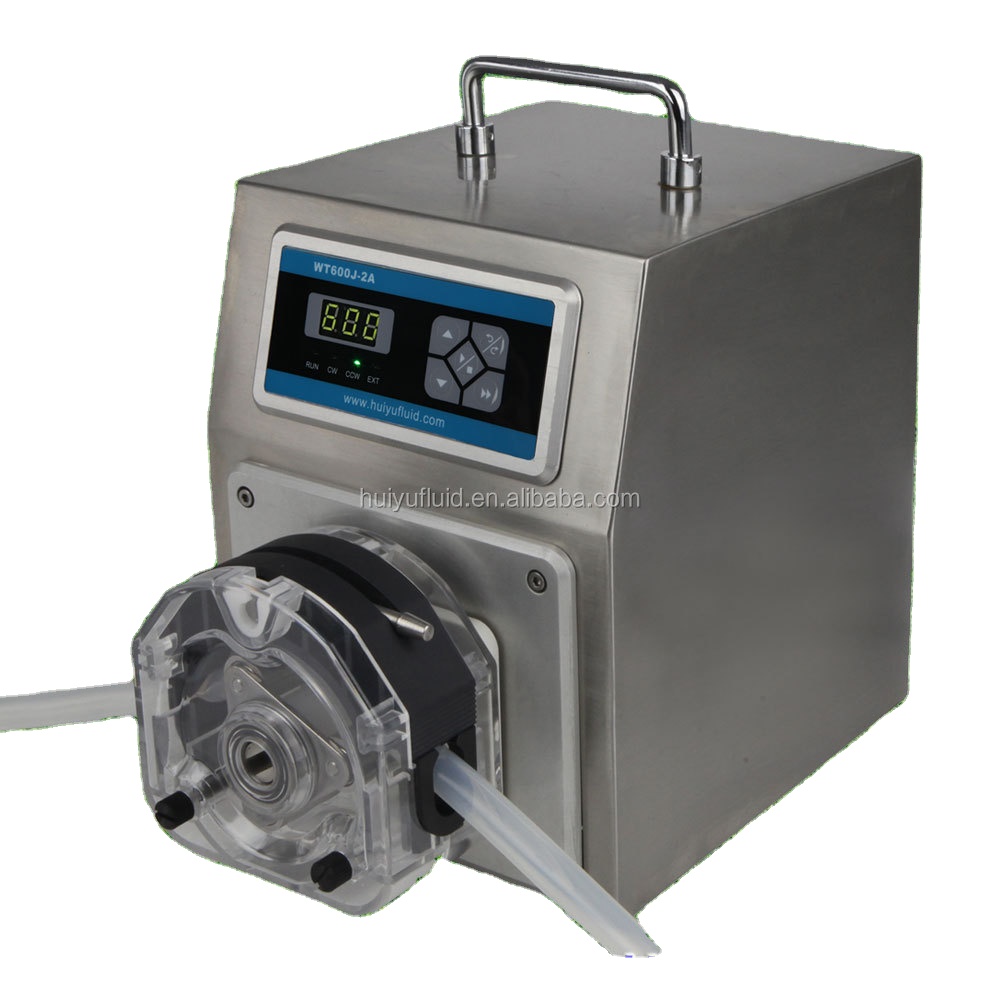

6l/min stainless steel housing peristaltic pump

  • 1
  • 2
  • 3

Warranty : 1 year

Customized support : OEM

Brand Name : Huiyu fluid

Model Number : WT600J-2A

Place of Origin : Beijing, China

Application : Drinking water treatment, Pharmaceutical industry, Water Treatment Solutions

Power Source : Electric

Pressure : Low Pressure

Structure : Peristaltic Pump

Cable Length : 1.5m

Outlet Size : 9.6mm

Voltage : 220v

Power : 400w

motor : DC brushless motor

product : 6l/min stainless steel housing peristaltic pump

Brand : Huiyu

Max flow rate : 6000ml/min

power supply : AC 220V ±20%

motor speed : 60-600rpm

dimension(LxWxH) : 250*190*255(mm)

Drive weight : 8kg

Packaging Details : 1 peristaltic pump in 1 carton , with foam plastic

Port : Beijing

Supply Ability : 100 Set/Sets per Week

Price : $950.00/sets >=1 sets

Contact Now

 6l/min  peristaltic pump

Product Description
6l/min stainless steel housing peristaltic pump



Technical parameter


      Speed range: 60-600rpm
       Precision:±1.0%
       Resolution: 1.0 rpm
       Output torque:1.50Nm
       Display:3 LTD Display current speed. 4 LTD indicate working condition separately.
       Memory Function: can keep the running Parameters automatically.
       External control function: 0.5-5V/1-10V/4-20mA/1-10KHz,can select 60-600rpm.
       Communication interface: RS485
       Power: AC 220V±20%  50Hz/60Hz
       Power consumption: ≤190W
   Working condition: Working condition temperature: 0-40
       Relative Humidity<80%
       Dimension (L*W*H): 250*190*255(mm)
       IP Grade: IP55
       Weight of Driver: 8kg

Pump head

Model

Available tubing

Max single channel flow rate range(ml/min)

YZ15-13A

(1-4 channels)

13#,14#,19#,16#,25#,17#,18#

2200



YZ25-13A

(1-4channels)

15#,24#

1600



KZ25

(1channels)

15#,24#,35#,36#

6000


CE certificate

         6l/min stainless steel housing peristaltic pump

          6l/min stainless steel housing peristaltic pump
