China glycerine dispensing peristaltic glycerine pump

Name: China glycerine dispensing peristaltic glycerine pump
Brand: Huiyu fluid, China glycerine dispensing peristaltic glycerine pump
Price: 200.00 USD

Buy cheap China glycerine dispensing peristaltic glycerine pump product

Brand Name : Huiyu fluid, China glycerine dispensing peristaltic glycerine pump

Model Number : BT100J-1A, BT100J-1A

Place of Origin : Beijing, China

Application : Pharmaceutical industry, wastewater treatment

Horsepower : 0.04

Power Source : Electric

Pressure : 0.2mpa, Low Pressure

Structure : peristaltic pump

Cable Length : 1.5m

Outlet Size : 6.4mm

Voltage : 220v 110v

Power : 40w

Standard or Nonstandard : NONSTANDARD

Theory : Reciprocating Pump

Motor speed : 1 to 100 rpm, reversible

Flow rate : 0.00025-380ml/min

Power supply : AC 90V-260 V 50/60 Hz

Power consumption : ≤30 W

Dimensions : 243x151x157 (mm)

Certification : CE

Packaging Details : China glycerine dispensing
packing:1set in 1 carton , size: 39cm x 22cm x 24cm

Port : Beijing

Supply Ability : 1000 Set/Sets per Week

Price : $200.00 - $450.00/sets

Contact Now

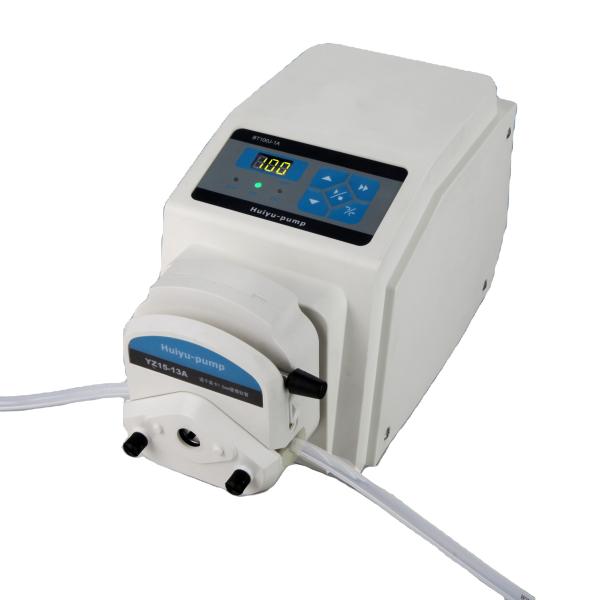

BT100J-1A CE approved China glycerine dispensing peristaltic glycerine pump

China glycerine dispensing peristaltic glycerine pump

Technical parameter
Speed: 0.1 to 100 rpm, reversible
Speed precision: 0.1 rpm
Speed control: Membrane keypad cw(green light)/ ccw(blue light) control
Display: 3-digit LED displays current rpm
External control: Start/stop, cw/ccw control and speed control 0-5 V/10 V, 4-20 mA and 0-10KHz
Communication interface: RS485
Power supply: AC 90V-260 V 50/60 Hz
Power consumption: ≤30 W
Operating condition: Temperature 0 to 40 ℃, Relative humidity < 80%
Drive weight: 2.5 kg
Dimensions (L×W×H): 243×151×157 (mm)
IP rating: IP 31

Technical Data Sheet

Pump head	Model	Available tubing	flow rate range (ml/min)
	YZ15-l3A	13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm	0.07-380ml/min
	YZ25-l3A	15#, 24# wall thickness:2.5mm	0.2-270ml/min
	DG10-lA	wall thickness:0.8-1.0mm ID≤3.17mm A Refers to 6 rollers; B refers to 10 rollers	0.00025-48ml/min
	DG10-1B		0.0002-32ml/min
	DG10-2A		0.00025-48ml/min (Single channel)
	DG10-2B		0.0002-32ml/min (Single channel)
	BZ25-lA	24# wall thickness:2.5mm	0.26-260ml/min

Tubing details

Suitable pump head

China glycerine dispensing peristaltic glycerine pump

Accessories

China glycerine dispensing peristaltic glycerine pump

CE certificate

China glycerine dispensing peristaltic glycerine pump

Web:www.avtechnology.co.uk

TRACKING No:GB/1067/4817/13

China glycerine dispensing peristaltic glycerine pump

OEM option

China glycerine dispensing peristaltic glycerine pump

Packaging & Shipping

1Piece in carton with foam plastic foam.

Usually , the pumps will be delivered by DHL, TNT or UPS.

Our Services

1 year warranty for all of our pumps

Contact

Willie wang

Skype ID : wang.yongqiang1

QQ : 2042293249

Email :sales@huiyufluid.com

Mobile :+86-18601191057/18131258138

Tel :+86-312-5881795, +86-10-63707366

Fax :+86-1063707968
