BT100J-1A CE approved variable speed laboratory dosing filling dispensing peristaltic pump

Name: BT100J1A CE approved variable speed laboratory dosing filling dispensing peristaltic pump
Brand: Huiyu fluid
Price: 200.00 USD

Buy cheap BT100J-1A CE approved variable speed laboratory dosing filling dispensing peristaltic pump product

Warranty : 1YEAR

Customized support : OEM

Brand Name : Huiyu fluid

Model Number : BT100J-1A, BT100J-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Pharmaceutical industry, wastewater treatment, fine chemcial, parmaceutical,water treatment

Horsepower : 0.04

Power Source : Electric

Pressure : 0.2mpa

Structure : peristaltic pump

Cable Length : 1.5m

Outlet Size : 6.4mm

Voltage : 220v

Power : 30w

motor : STEPPER MOTOR

Product name : filling dispensing peristaltic pump

Motor speed : 1 to 100 rpm, reversible

Flow rate : 0.00025-380ml/min

Usage : fillling dosing dispensing in laboratory

Power supply : AC 90V-260 V 50/60 Hz

Power consumption : ≤30 W

Dimensions : 243x151x157 (mm)

Certification : ce

Packaging Details : chemical filling dosing dispensing peristaltic pump,
packing:1set in 1 carton , size: 39cm x 22cm x 24cm

Port : Beijing

Supply Ability : 1000 Set/Sets per Week

Price : $200.00 - $450.00/sets

Contact Now

Product Description

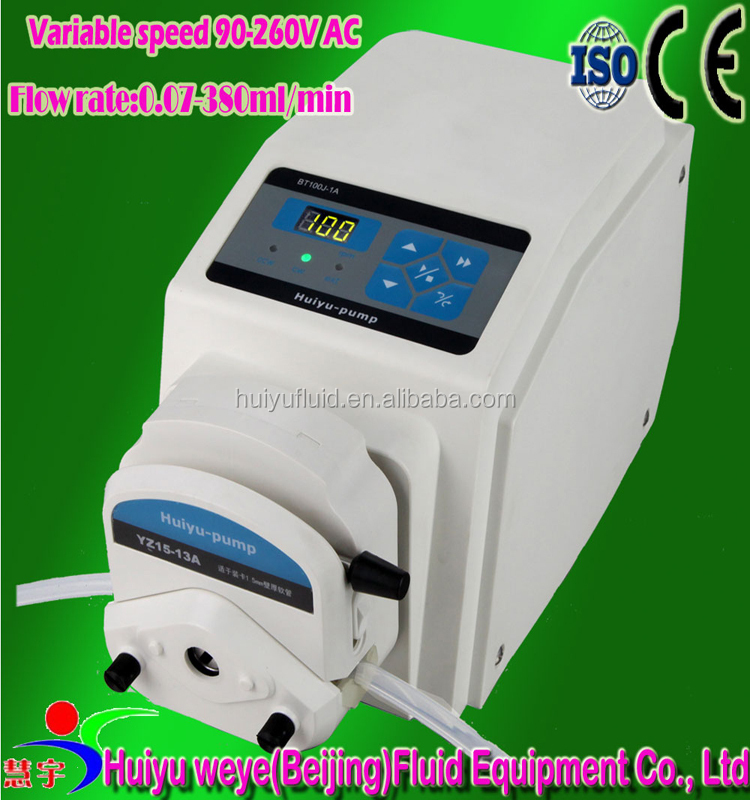

CE approved variable speed laboratory dosing filling dispensing peristaltic pump

Model: BT100J-1A

BT100J-1A CE approved variable speed laboratory dosing filling dispensing peristaltic pump

Introduction

BT100J-1A Precise peristaltic pump can be loaded pump head YZ15, YZ25,DG-1 and DG-2. and It can supply flow rates from 0.0002 to 380 ml/min. The motor speed can be adjusted manually or automatically through external control. Store the running parameters automatically. very easy to operate.It is the best selling economical peristaltic pump.

- Speed: 0.1 to 100 rpm, reversible
- Speed precision: 0.1 rpm
- Speed control: Membrane keypad
- Display: 3-digit LED displays current rpm
- Communication interface: RS485
- External control: Start/stop, cw/ccw control and speed control 0-5 V, 0-10 V, 4-20 mA and 0-10KHz
- Power supply: AC 90V-260 V 50/60 Hz
- Power consumption: ≤30 W
- Operating condition: Temperature 0 to 40 ℃
- Relative humidity < 80%
- Dimensions (L×W×H): 243×151×157 (mm)
- Drive weight: 2.5kg
- IP rating: IP 31

Technical Data Sheet

Pump head	Model	Available tubing	flow rate range (ml/min)
	YZ15-l3A	13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm	0.07-380ml/min
	YZ25-l3A	15#, 24# wall thickness:2.5mm	0.2-270ml/min
	DG10-lA	wall thickness:0.8-1.0mm ID≤3.17mm A Refers to 6 rollers; B refers to 10 rollers	0.00025-48ml/min
	DG10-1B		0.0002-32ml/min
	DG10-2A		0.00025-48ml/min (Single channel)
	DG10-2B		0.0002-32ml/min (Single channel)
	BZ25-lA	24# wall thickness:2.5mm	0.26-260ml/min

Tubing details

Suitable pump head

BT100J-1A CE approved variable speed laboratory dosing filling dispensing peristaltic pump

Accessories

BT100J-1A CE approved variable speed laboratory dosing filling dispensing peristaltic pump

CE certificate

BT100J-1A CE approved variable speed laboratory dosing filling dispensing peristaltic pump

Web:www.avtechnology.co.uk

TRACKING No:GB/1067/4817/13

BT100J-1A CE approved variable speed laboratory dosing filling dispensing peristaltic pump

OEM option

BT100J-1A CE approved variable speed laboratory dosing filling dispensing peristaltic pump

Packaging & Shipping

1Piece in carton with foam plastic foam.

Usually , the pumps will be delivered by DHL, TNT or UPS.

Our Services

1 year warranty for all of our pumps

Contact

Willie wang

Skype ID : wang.yongqiang1

QQ : 2042293249

Email :sales@huiyufluid.com

Mobile :+86-18601191057/18131258138

Tel :+86-312-5881795, +86-10-63707366

Fax :+86-1063707968

BT100J-1A CE approved variable speed laboratory dosing filling dispensing peristaltic pump Images
