JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

Name: JL350J1A 220V AC 30litermin external control industrial material chemical feeding hose peristaltic pump
Brand: Huiyu fluid
Price: 1 USD

Buy cheap JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump product

Warranty : 1year

Customized support : OEM

Brand Name : Huiyu fluid

Model Number : JL350J-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Pharmaceutical industry, wastewater treatment

Horsepower : 0.5

Power Source : Electric

Pressure : 0.2mpa

Structure : hose pump

Cable Length : 1.5mm

Outlet Size : 25.4mm

Voltage : 220v 380v

Power : 400w

motor : AC MOTOR

product : peristaltic hose pump

Brand : Huiyu fluid

model : JL350-1A

flow rate : 1.3-35Liter/min

power supply : AC 220V ±20%

motor speed : 30 to 350 rpm, reversible

dimension(LxWxH) : 417X401X321 (mm)

Drive weight : 32 kg

Certification : ce

Packaging Details : industrial peristaltic hose pump
packed in polywood case with foam plastic

Port : Beijing,Tianjin,Qingdao

Supply Ability : 100 Set/Sets per Week

Price : $1,660.00 - $2,550.00/sets

Contact Now

Product Description

industrial peristaltic hose pump

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

Introduction

JL350-1A peristaltic pump is ideal for high flow rates fluids transfer, driven by the AC motor and the frequency converter control the speed.The pump delivers flow rates is less than 35 L/min. Through the transparent front cover, the running status of the pump head is visible. The speed, running direction and run/stop of the pump are controlled manually by membrane Keypad or automatically by external control interface. Its operation is simple and reliable.

Technical parameters
-Speed: 30 to 350 rpm, reversible

- Max flow rate:35liter/min
-Speed precision: 0.6 rpm
-Speed control: rotary encoder switch, acceptable external control and communication control
-Display: LED display
-Speed control signal input: 0-5V,0-10V,4-20mA
-Start and stop control signal input: switching control
-Direction control signal input: switching control
-Communication interface: RS485 and RS232
-Dimensions (L × W × H): 417×401×321 (mm)
-Power supply: AC 220V±20%
-Power consumption: < 400 W
-Operating condition: Temperature 0 to 40°C,
-Relative humidity < 80%
-IP rating: IP55
-Pump weight: 32 kg
Functions and features

- High-power pumps, and the maximum flow rates can reach 35L/min
- The structure of concave working surface and convex roller realize the tubing self-position function. It reduces abrasion and prolongs tubing life.
- Variable frequency speed control to AC motor with creeper gear
- Adjustable occlusion
- Strong drive
- Pump head operation is visible through transparent front cover

Technical Data Sheet

Drive	Pump head	Available tubing	flow rate range (ml/min)	weight(kg)
JL350J-1A	KZ48/63	88#	1.3-15	32
JL350J-1A	KZ48/63	92#	3-35	32

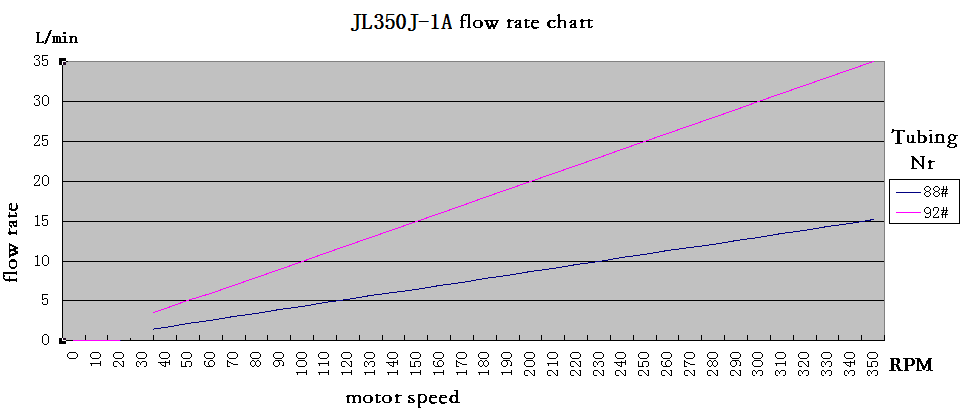

Flow rate chart

Mounting drawing

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

Tubing loading

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

OEM option

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

Accessories

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump

CE certificate

JL350J-1A 220V AC 30liter/min external control industrial material chemical feeding hose peristaltic pump
