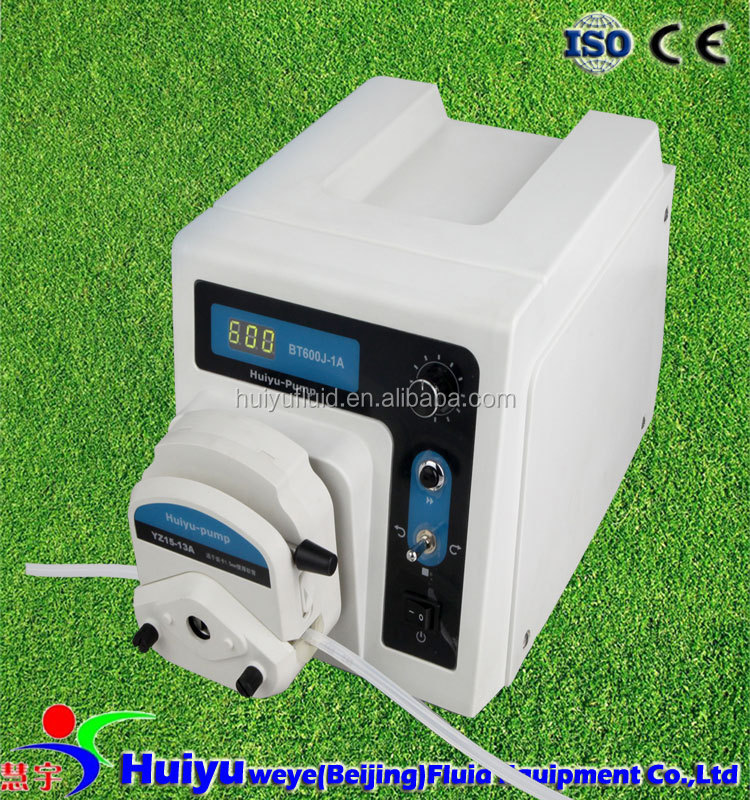

BT600J-1A precision laboratory peristaltic pump

  • 1
  • 2
  • 3

Warranty : 1 year

Customized support : OEM

Brand Name : Huiyu fluid

Model Number : BT600J-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Pharmaceutical industry, wastewater treatment

Horsepower : 0.06

Power Source : Electric

Pressure : 0.2MPA

Structure : Peristaltic pump

Cable Length : 1.5m

Outlet Size : 9.6m

Voltage : 220v 110v

Power : 40w

motor : stepper motor

product : peristaltic pump

Brand : Huiyu fluid

flow rate : 0.07-2200ml/min

power supply : AC 220V ±20%

motor speed : 0.1-300rpm

dimension(LxWxH) : 276x184x175 (mm)

Drive weight : 3.5 kg

Packaging Details : carton

Port : Beijing

Supply Ability : 100 Set/Sets per Week

Price : $350.00 - $600.00/sets

Contact Now



Product Description

 BT600J-1A precision laboratory peristaltic pump

Technical parameter
   Speed: 1 to 600 rpm, reversible
    Speed resolution: 1 rpm
    Speed control: rotary encoder switch, acceptable external control and communication control
    Display: 3-digit LED displays current speed
    Analog interface: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, 4 to 20 mA and 0 to 10 KHz speed control
    Communication interface: RS485
    Memory function: Storing the running parameters automatically
    Prime button for fast filling and emptying
    Dimensions (L×W×H): 285×207×180 (mm)
    Power supply: AC 90V-260V/100W
    Operating condition: Temperature 0 to 40℃ Relative humidity < 80%
    IP rating: IP 31
    Drive weight: 3.8 kg

Technical Data Sheet

Pump head  Pump head model Available tubing flow rate range (ml/min)
  YZ15-l3A 13#, 14#, 19#, 16#, 25#, 17#, 18#  wall thickness:1.5mm 0.07-2200ml/min
YZ25-l3A 15#, 24#  wall thickness:2.5mm 1.7-1600ml/min
  BZ25-lA 24#  wall thickness:2.5mm 2.9-1600ml/min







Suitable pump head

BT600J-1A precision laboratory peristaltic pump

OEM option

BT600J-1A precision laboratory peristaltic pump

Accessories

BT600J-1A precision laboratory peristaltic pump

CE certificate

         BT600J-1A precision laboratory peristaltic pump

          BT600J-1A precision laboratory peristaltic pump
