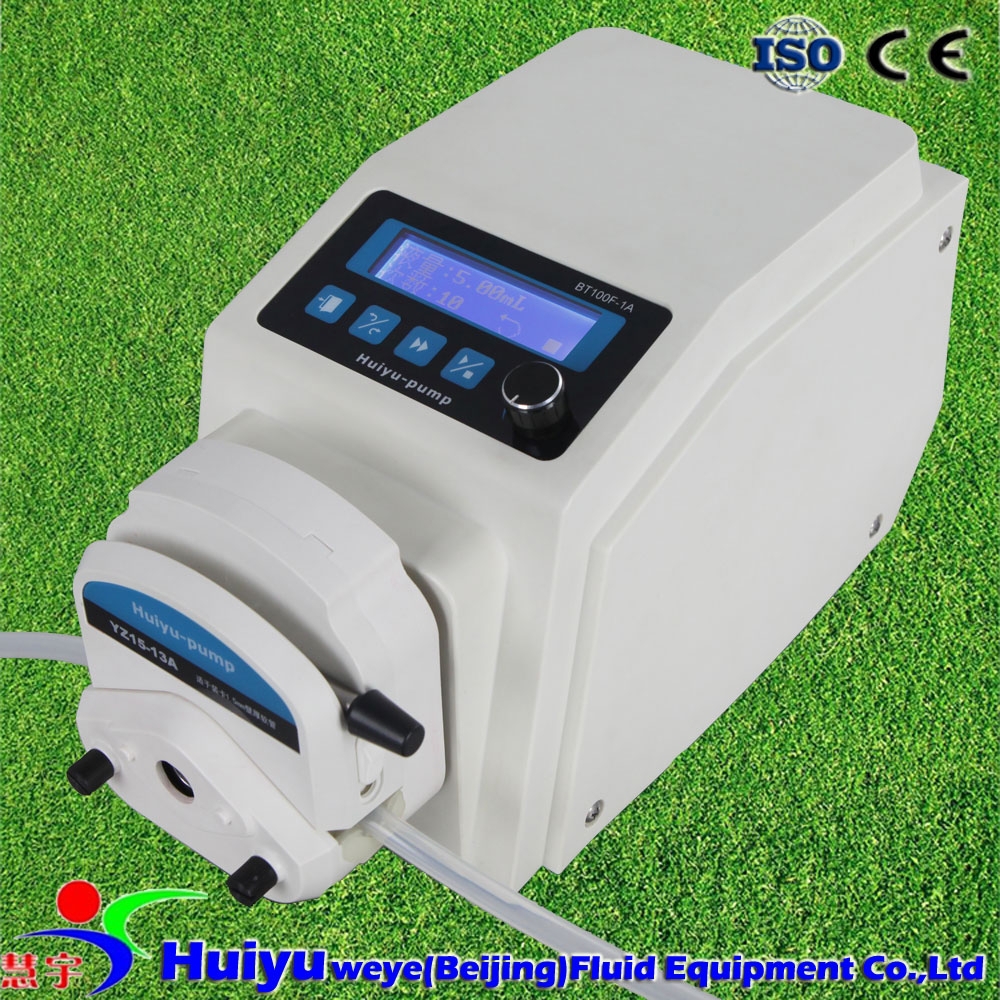

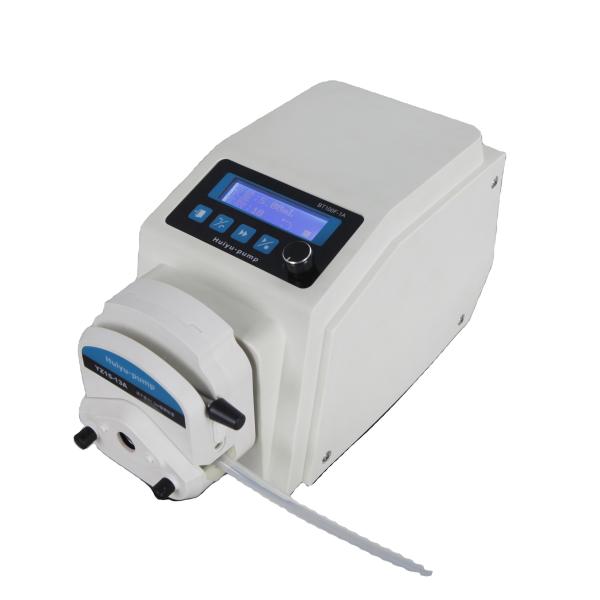

foot pedal switch Lab ph dosing peristaltic pump

Name: foot pedal switch Lab ph dosing peristaltic pump
Brand: Huiyu
Price: 355.00 USD

Buy cheap foot pedal switch Lab ph dosing peristaltic pump product

Warranty : 1year

Customized support : OEM

Brand Name : Huiyu

Model Number : BT100F-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Pharmaceutical industry, Wastewater Transport and Flood Control

Horsepower : 0.05

Power Source : Electric

Pressure : Low Pressure

Structure : Peristaltic Pump

Cable Length : 1.5m

Outlet Size : 6.4mm

Voltage : 110v 220v

Power : 40w

motor : stepper motor

product : foot pedal switch Lab ph dosing peristaltic pump

Brand : Huiyu

flow rate : 0.07-380ml/min

power supply : AC 220V ±20%

motor speed : 0.1-100rpm

dimension(LxWxH) : 243X151X157 (mm)

Drive weight : 3.5 kg

Usage : water,fluid,reagent,oil,detergent

Fuel : electricity

pressure : 0.2mpa 2bar

Packaging Details : Lab ph dosing pump with foot pedal switch
with foam plastic

Port : Beijing,Tianjin,Qingdao

Supply Ability : 100 Set/Sets per Week

Price : $355.00/sets >=1 sets

Contact Now

foot pedal switch Lab ph dosing peristaltic pump

Product Description

foot pedal switch Lab ph dosing peristaltic pump

Max flow rate:380ml/min

Technical parameter
Speed: 0.1-100 rpm, reversible
Speed precision: 0.1 rpm
Dispensing volume: 0.01mL to 9.99L
Copy number: 1 to 9999, 0 means unlimited cycle.
Pause time : 0.1sec to 99.9 min
Speed control: membrane keypad and rotary encoded switch
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
communication control: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 243×151×157 (mm)
Power: 90-260V AC,50/60Hz
Power consumption: < 40W
Drive Weight: 3.5 kg
IP rating: IP 31

Technical Data Sheet

Pump head	model	Available tubing	flow rate range (ml/min)
	YZ15-1A	13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm	0.07-380ml/min
	YZ25-1A	15#,24# wall thickness 2.5mm	0.2-270ml/min
	DG-1A	ID≤3.17mm; wall thickness 0.8-1.0mm; A Refers to 6 rollers; B refers to 10 rollers	0.00025-48ml/min
	DG-1B		0.0002-32ml/min
	DG-2A		0.00025-48ml/min Single channel
	DG-2B		0.0002-32ml/min Single channel
	DG-4A		0.00025-48ml/min Single channel
	DG-4B		0.0002-32ml/min Single channel

foot pedal switch Lab ph dosing peristaltic pump

Operation video link on Youtube for reference:

https://youtu.be/y6sA2m8JKAE

Best selling standard perisaltic pump BT100J+YZ15

Click the photo for technical details

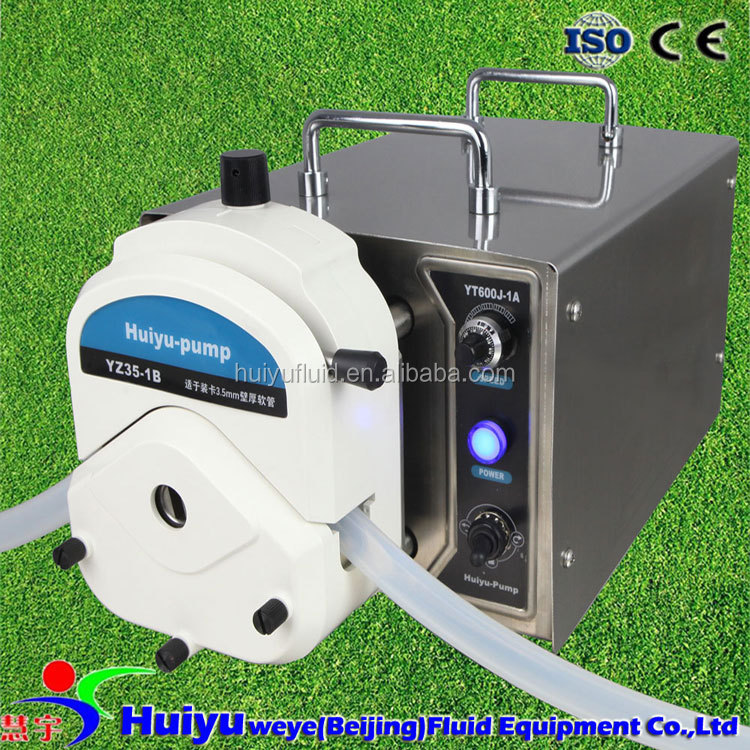

Industrial perisaltic pump BT600J+YZ35

Click the photo for technical details

Laboratory syringe pump LST01-1A

click the photo for technical details

Micro plunger pump

click the photo for technical details

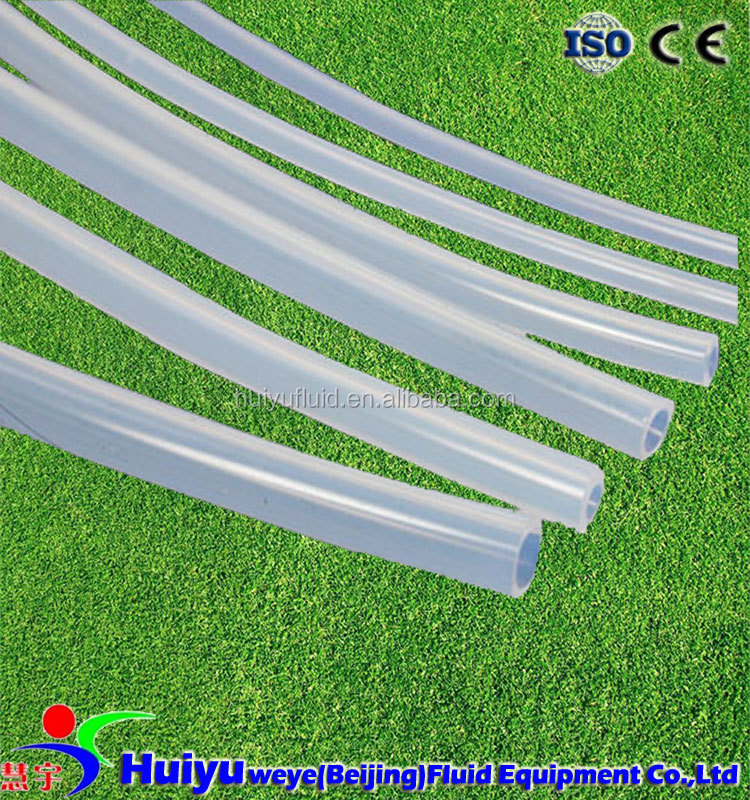

silicone tube

Packaging & Shipping

foot pedal switch Lab ph dosing peristaltic pump

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

Suitable pump head

foot pedal switch Lab ph dosing peristaltic pump

OEM option

foot pedal switch Lab ph dosing peristaltic pump

Accessories

foot pedal switch Lab ph dosing peristaltic pump

CE certificate

foot pedal switch Lab ph dosing peristaltic pump
