AC gear motor large flow rate industrial peristaltic pump

Name: AC gear motor large flow rate industrial peristaltic pump
Brand: Huiyu fluid
Price: 1 USD

Warranty : 1 year

Customized support : OEM

Brand Name : Huiyu fluid

Model Number : JL350J-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Pharmaceutical industry, Metering

Horsepower : 350rpm

Power Source : Electric

Pressure : 0.2Mpa, Low Pressure

Structure : reciprocal

Voltage : AC220V±10%

Power : 400W, Electric

Standard or Nonstandard : Nonstandard

Theory : Reciprocating Pump

Certification : RoHS

Supply Ability : 100 Set/Sets per Week

Price : $1,000.00 - $1,850.00/sets

Contact Now

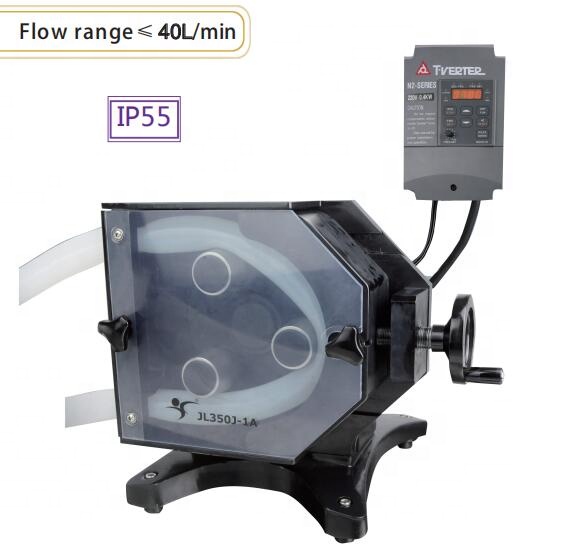

Standard peristaltic pump JL350J-1A Flow rate≤40L/min

High IP rating:55

Product Description

AC gear motor large flow rate industrial peristaltic pump

Features:

Mainly used in large flow for production AC gear motor drive
Speed adjustable by frequency convertor
Pump drive and control in split body to improve the IP rating
Central convex roller and concave pressing block to reduce the friction of tubing
Transparent cover for watch the running status of the pump
Adjustable pressing block
Split body in design for remote control,install and maintenance

Technical parameter
Speed: 30 to 350rpm, cw/ccw reversable
Speed resolution: 0.6 rpm
Operation: membrane key,external signal and communication.
Display: frequency convertor LED
Motor speed signal input: 0 to 5 V, 0 to 10 V, 4 to 20 mA signals
Start/stop signal input:switching volume control
CW/CCW signal input: switching volume control
Communication port: RS485 and RS232
Dimensions (L×W×H): 417X401X321 (mm)
Power supply: AC 220V±10%

Power consumption:400aw
Operating condition: Temperature 0 to 40℃ Relative humidity < 80%
IP rating: IP 55
Drive weight: 32 kg

Technical Data Sheet

Pump Drive	Pump head model	Available tubing	flow rate range (ml/min)	Weight
JL350J-1A	kz48/63	88#	1.3-15	32kg
JL350J-1A	kz48/63	92#	3-40	32kg
