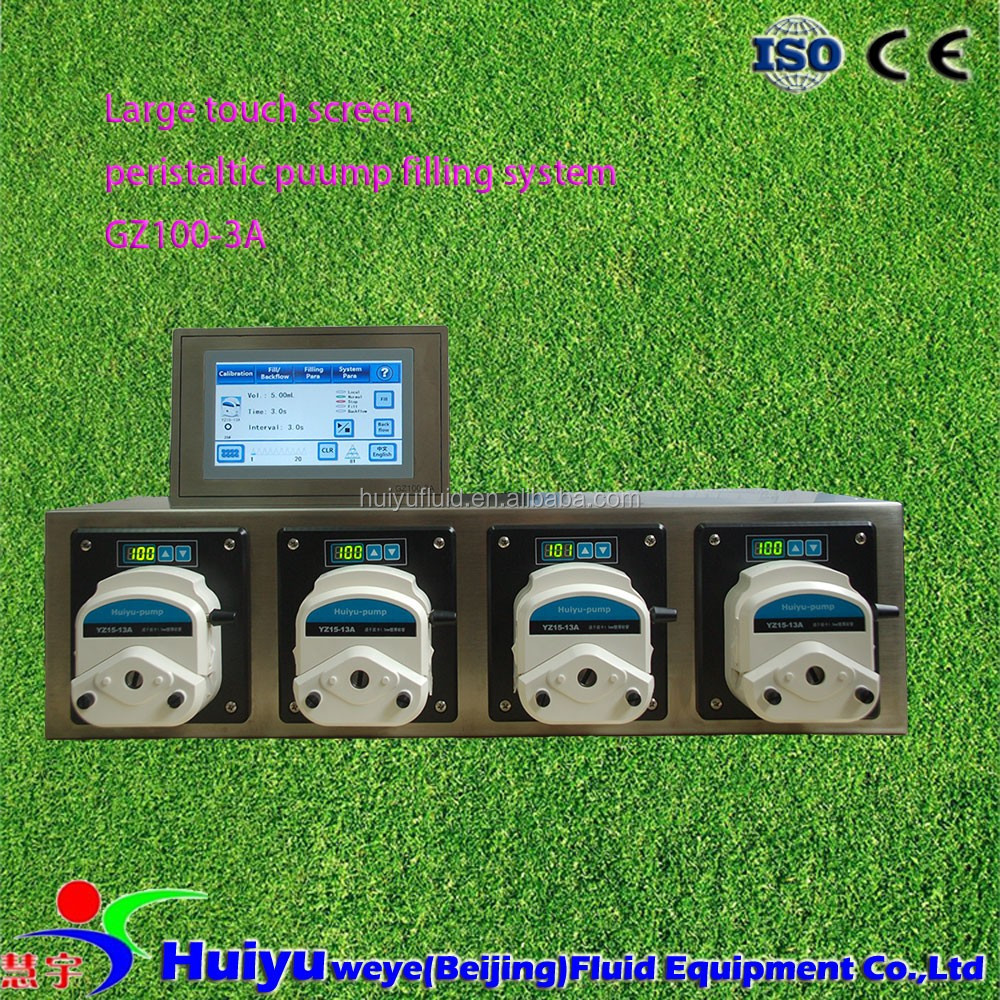

1ml-100ml Peristaltic Filling Machine Peristaltic Pump Filling System For Plastic Nasal Spray

  • 1
  • 2
  • 3

Brand Name : Huiyu

Model Number : GZ100-3A

Place of Origin : Beijing, China

Packaging Details : Wooden Box

Supply Ability : 100 Set/Sets per Week

Price : $2,000.00 - $3,000.00/sets

Warranty : 1 year

Customized support : OEM

Application : Food and Beverage Industry, Pharmaceutical industry

Power Source : Electric

Pressure : 0.2Mpa

Structure : Peristaltic Pump

Voltage : AC90V-260V

Power : 50/60Hz

After-sales Service Provided : Overseas third-party support available

name : Cosmetic toner filling peristaltic pump

Volume range of filling : 1ml-100ml

Time range of filling : 0.5-30s

Communication Interface : RS485

Dimension : 800x200x174 (mm)

Available Power : 220VAC±10%/300W

Start/stop control : contacts input

Contact Now

Cosmetic toner filling peristaltic pump







1ml-100ml Peristaltic Filling Machine Peristaltic Pump Filling System For Plastic Nasal Spray




Product Description

                             1ml-100ml Peristaltic Filling Machine Peristaltic Pump Filling System For Plastic Nasal Spray

Technical parameter:

Volume range of filling: 1ml—100ml
Time range of filling: 0.5—30s

Motor speed:1-600rpm
Speed range: Calculate automatically according to the volume and time of filling.
Back Suction Angle: 0—360°
Calibration: put the actual volume into the pump, it can make a calibration automatically.
Adjust solution amount online: Users can adjust the solution amount and percentage online
Start/stop control : contacts input (stop—filling when lack of bottles)
Memory Function: Repower the pump, it can keep the parameters before power—down.
Communication Interface: RS485
Dimension: 800×200×174 (mm)
Available Power: 220VAC±10%/150W
Working  condition temperature: 0℃—40℃
Relative Humidity : <80%

Weight:18.5Kg
IP Grade: IP31

Technical Table:





Available Pump head

Filling Volume(ml)

Tubing specification

Filling Time(s)

repeatability error

Dispensing head ID(mm)

Production Capacity (pcs/min)

YZ15-13A

2-3

    14#

1-1.5





 ≤±1.5%

≤1.5

30-24

3-6

     19#

1-2

≤2.0

30-20

6-12

     16#

1-2

≤3.0

30-20

12-20

     25#

1-1.6

≤3.0

30-23

20-40

     17#

1-2

≤3.0

30-20

YZ25-13A

12-20

     15#

1-1.6

  ≤±1.5%

≤3.0

30-23

20-40

     24#

1-2

 ≤±1.5%

≤3.0

30-20







OEM option

1ml-100ml Peristaltic Filling Machine Peristaltic Pump Filling System For Plastic Nasal Spray

CE certificate



1ml-100ml Peristaltic Filling Machine Peristaltic Pump Filling System For Plastic Nasal Spray
