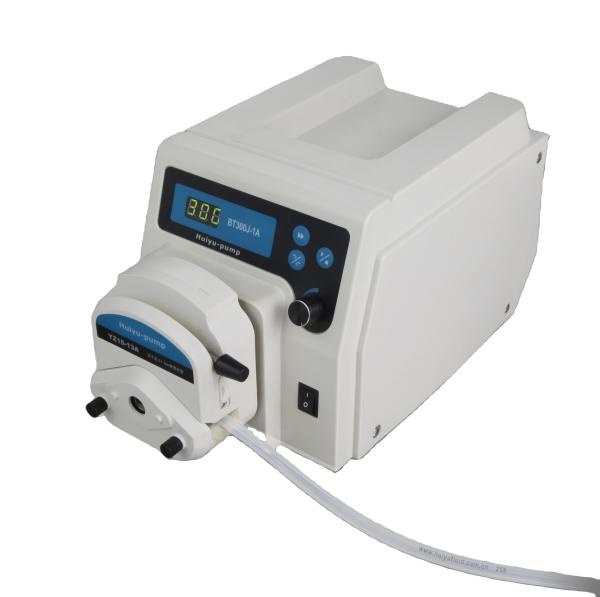

Beijing Huiyu equipment matching peristaltic pump with foot pedal

Name: Beijing Huiyu equipment matching peristaltic pump with foot pedal
Brand: Huiyu fluid
Price: 360.00 USD

Buy cheap Beijing Huiyu equipment matching peristaltic pump with foot pedal product

Warranty : 1 year

Customized support : OEM

Brand Name : Huiyu fluid

Model Number : BT300J-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Pharmaceutical industry, wastewater treatment

Power Source : Electric

Pressure : Low Pressure

Structure : Peristaltic Pump

Outlet Size : 6.4mm

Voltage : 110v 220v

motor : stepper motor

product : Beijing Huiyu equipment matching peristaltic pump

Brand : Huiyu fluid

flow rate : 0.07-1140ml/min

power supply : AC 220V ±20%

motor speed : 0.1-300rpm

dimension(LxWxH) : 276x184x175 (mm)

Drive weight : 3.5 kg

Usage : water,fluid,reagent,oil,detergent

Fuel : electricity

Packaging Details : Beijing Huiyu equipment matching peristaltic pump with foot pedal

Port : Beijing

Supply Ability : 100 Set/Sets per Week

Price : $360.00/sets >=1 sets

Contact Now

Product Description

Beijing Huiyu equipment matching peristaltic pump with foot pedal
peristaltic pump tumescent pumpblood circulation pump

Technical parameter
Speed: 1 to 300 rpm, reversible
Speed resolution: 1 rpm
Running direction: cw/ccw
Display: 3-digit LED displays current speed
Analog interface: Start/stop and cw/ccw control, 0 to 5V, 0 to 10V, 4 to 20 mA and 0 to 10 KHz speed control
Communication interface: RS485
Power supply: AC 90 - 260V 50/60 Hz
Power consumption: < 50W
Operating condition: Temperature 0 to 40℃ Relative humidity < 80%
Drive weight: 3.5 kg
Dimensions (L×W×H): 276×184×175 (mm)
IP rating: IP 31

Technical Data Sheet

Pump head	model	Available tubing	flow rate range (ml/min)
	YZ15-l3A	13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm	0.07-1140ml/min
	YZ25-l3A	15#, 24# wall thickness:2.5mm	1.7-810ml/min
	BZ25-lA	24# wall thickness:2.5mm	0.26-780ml/min

Suitable pump head

Beijing Huiyu equipment matching peristaltic pump with foot pedal

OEM option

Beijing Huiyu equipment matching peristaltic pump with foot pedal

Accessories

Beijing Huiyu equipment matching peristaltic pump with foot pedal

CE certificate

Beijing Huiyu equipment matching peristaltic pump with foot pedal
