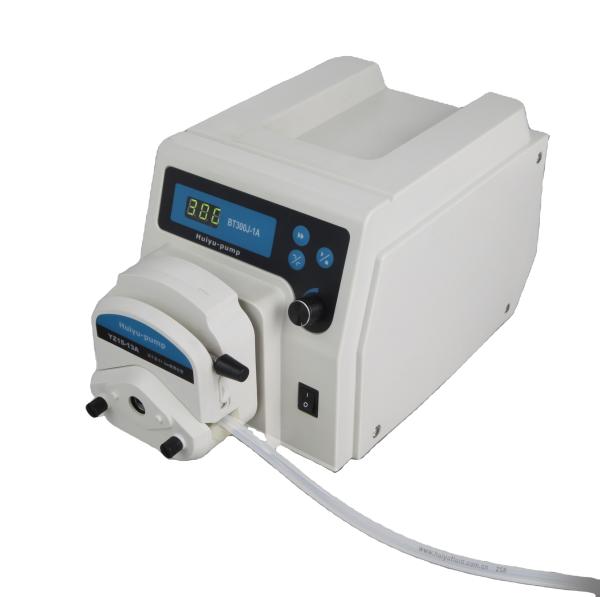

linear peristaltic pump

Name: linear peristaltic pump
Brand: Huiyu fluid
Price: 350.00 USD

Buy cheap linear peristaltic pump product

Warranty : 1 year

Customized support : OEM

Brand Name : Huiyu fluid

Model Number : BT300J-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Pharmaceutical industry, wastewater treatment

Power Source : Electric

Pressure : Low Pressure

Structure : Peristaltic Pump

Cable Length : 1.5M

Outlet Size : 6.4mm

Voltage : 110v 220v

Power : 40w

motor : stepper motor

Product name : linear peristaltic pump

Brand : Huiyu fluid

flow rate : 0.07-1140ml/min

power supply : 40w

motor speed : 1-300rpm

dimension(LxWxH) : 276x184x175 (mm)

Drive weight : 3.5 kg

Type : BT300J-1A

Max pressure : 0.2MPA 2BAR 30PSI

Color : white

Packaging Details : linear peristaltic pump

Port : Beijing

Supply Ability : 100 Set/Sets per Week

Price : $350.00 - $600.00/sets

Contact Now

Product Description

linear peristaltic pump
peristaltic pump tumescent pumpblood circulation pump

Technical parameter
Speed: 1 to 300 rpm, reversible
Speed resolution: 1 rpm
Running direction: cw/ccw
Display: 3-digit LED displays current speed
Analog interface: Start/stop and cw/ccw control, 0 to 5V, 0 to 10V, 4 to 20 mA and 0 to 10 KHz speed control
Communication interface: RS485
Power supply: AC 90 - 260V 50/60 Hz
Power consumption: < 50W
Operating condition: Temperature 0 to 40℃ Relative humidity < 80%
Drive weight: 3.5 kg
Dimensions (L×W×H): 276×184×175 (mm)
IP rating: IP 31

Technical Data Sheet

Pump head	model	Available tubing	flow rate range (ml/min)
	YZ15-l3A	13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm	0.07-1140ml/min
	YZ25-l3A	15#, 24# wall thickness:2.5mm	1.7-810ml/min
	BZ25-lA	24# wall thickness:2.5mm	0.26-780ml/min

Suitable pump head

linear peristaltic pump

OEM option

linear peristaltic pump

Accessories

linear peristaltic pump

CE certificate

linear peristaltic pump
